Human Machine Interface (HMI) menjadi perantara antara manusia dan mesin. Melalui penghubung ini, operator PLC dapat memantau dan mengendalikan sistem otomasi yang sedang berlangsung.

Menyajikan data real-time kepada setiap parameter dan status peralatan untuk agar dapat melihat performa sistem secara menyeluruh. Dengan data tersebut, nantinya operator PLC dapat melampirkan hasil laporan sistem secara menyeluruh.

Anak Teknik Indonesia sebagai wadah edukasi terkait dunia engineering menawarkan solusi untuk pemantauan data kinerja sistem PLC melalui HMI. Bundle Schneider HMI Easy Touch Pane adalah paket PLC Schneider M221 dan HMI untuk perancangan sistem otomasi Anda.

Bundle Schneider HMI Easy Touch Panel

Bundle ini berisikan satu HMI dan satu PLC dari Schneider Electric. Setiap bundle memakai jenis HMI yang sama dengan seri PLC yang berbeda.

HMI

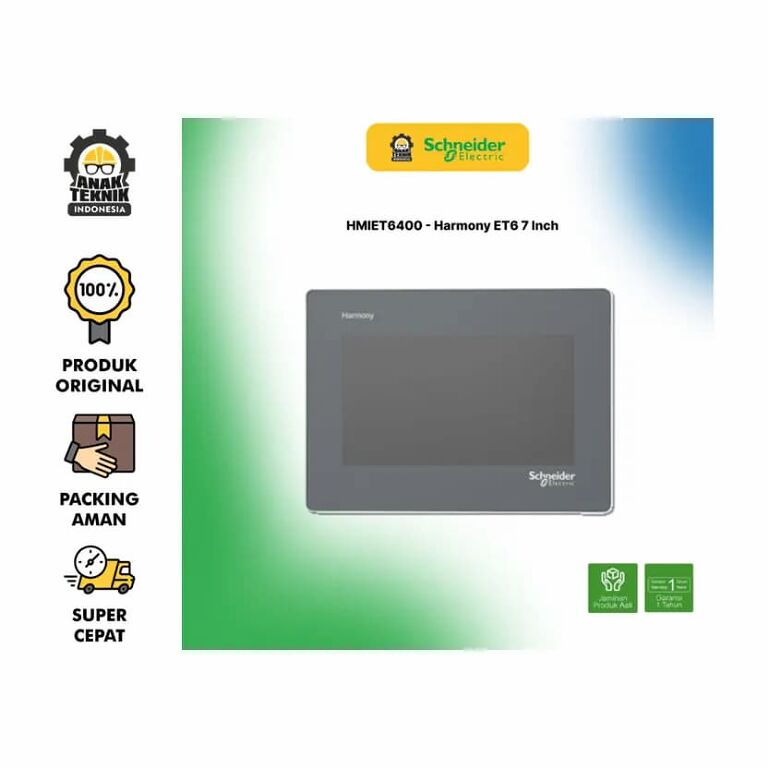

• Schneider Electric HMI ET6 ET6 7" Easy Touch Panel, 16M color, 2xCOM USB, Ethernet Model - HMIET6400.

PLC

• Schneider Electric PLC Modicon Controller M221 16 IO Relay Ethernet TM221CE16R
• Schneider Electric PLC Modicon Controller M221 16 IO Relay Ethernet TM221ME16R

Spesifikasi Bundle Schneider HMI Easy Touch Panel 7inc HMIET6400

• 8 input, 8 output

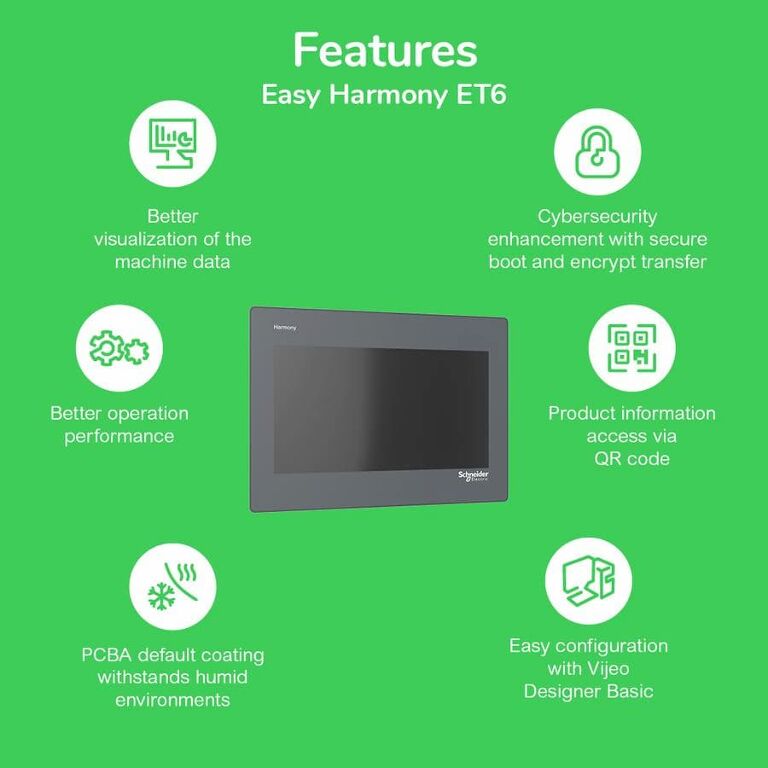

• Range of product: Easy Harmony ET6
• Product or component type: Touch panel screen
• Software designation: Vijeo Designer Basic
• Operating system: VxWorks
• Processor name: ARM Cortex-A8
• Display size: 7 inch
• Display type: Colour TFT LCD
• Display colour: 16 million colours
• Display resolution: 800 x 480 pixels WVGA
• Touch panel: Single touch analogue resistive
• Brightness: 16 levels
• Character Font:
  • ASCII
  • ASCII (European characters)
  • Chinese (simplified Chinese)
  • Japanese (ANK, Kanji)
  • Katakana
  • Korean
  • Taiwanese (traditional Chinese)
• [Us] rated supply voltage: 24 V DC +/- 20 %
• Inrush current: 30 A
• Local signalling:
  • Status LED green, steady for operating
  • Status LED orange, steady for software starting up
  • Status LED red, steady for power supply (ON)
  • Status LED, off for power supply (OFF)
• Power consumption in W: 9 W
• Number of pages: 200 application pages
• Processor frequency: 800 MHz
• Port Ethernet: 10/100BASE
• Memory description:
  • Device memory 256 MB
  • User data memory 256 MB
  • Backup memory 128 kB
• Integrated connection type:
  • 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C (rate: 2400...115200 bps)bottom
  • 1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 (rate: 2400...115200 bps)bottom
  • COM2 serial link (rate: 2400...187500 bps)bottom
  • 1 Ethernetbottom
  • 1 USB 2.0 type Aback
  • 1 USB 2.0 type micro Bback
• Supply: External supply
• Realtime clock:
  • Built-in 0...50 °C
  • Built-in 10...90 % RH
• Downloadable protocols:
  • Modbus
  • Uni-TE
  • Third party protocols
• Fixing mode: By 4 screws, mounting on 1.6...5 mm thick panel
• Cut-out dimensions: 190 x 135 mm panel cut dimension
• Height: 151 mm
• Width: 206 mm
• Depth: 45 mm
• Net weight: 0.61 kg

Spesifikasi Controller M221-16IO Relay Ethernet TM221ME16R

• Number of I/O : 16
• Manufacturer Series : Modicon M221
• Output Type : Digital
• Kit Included : Yes
• Network Type : Ethernet, ModBus, Profibus DP, USB
• Display Included : Yes
• Program Capacity : 10000 Steps
• Programming Interface : Mini USB
• Programming Language Used : CoDeSys
• Maximum Inputs/Outputs : 16
• Mounting Type : Panel Mount
• Total Memory Available : 128 MB

Spesifikasi Controller M221-16IO Relay Ethernet TM221CE16R

• Range of product : Controller M221 16 IO relay Ethernet
• Rated supply voltage : 100...240 V AC
• Discrete input number : 9, discrete input conforming to IEC 61131-2 Type 1
• Analogue input number : 2 at 0...10 V
• Discrete output type : Relay normally open
• Discrete output number : 7 relay
• Discrete output voltage : 5...125 V DC, 5...250 V AC
• Discrete output current : 2 A
• High Speed Counter : 4 fast input (HSC mode) at 100 kHz 32 bits
• Counter function :
  • Pulse/direction
  • A/B
  • Single phase
• Integrated connection type :
  • USB port with mini B USB 2.0 connector
  • serial link 1 with RJ45 connector and RS232/RS485 interface
  • Ethernet 10BASE-T/100BASE-TX 1

Harga Bundle Schneider HMI Easy Touch Pane

Bundle Schneider HMI Easy Touch Pane dibandrol dengan rentang harga Rp 5.300.000 sampai Rp 5.800.000. Berikut daftar harga bundle Schneider HMI Easy Touch Pane

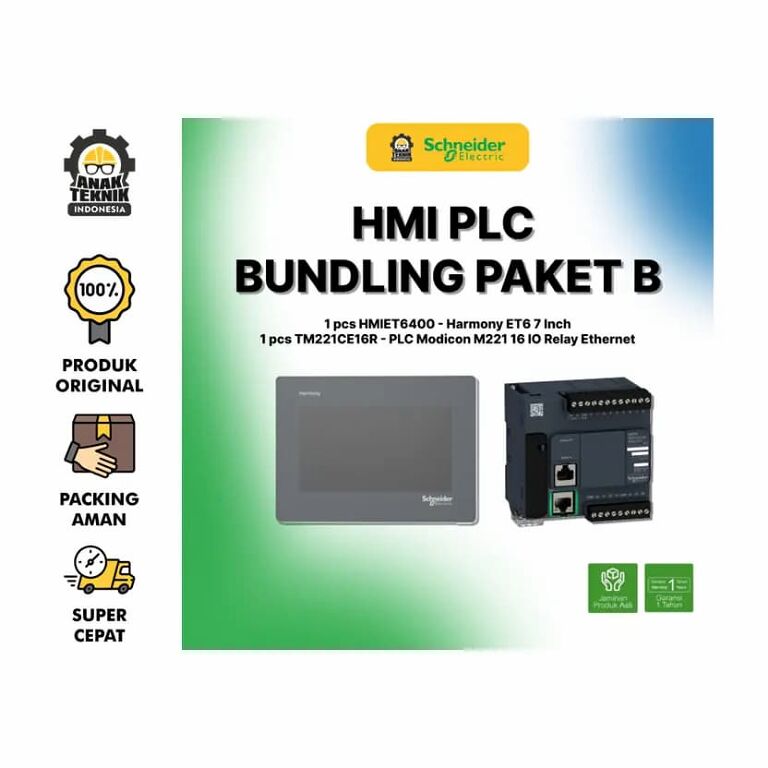

• Bundle Schneider HMI Easy Touch Panel 7inc HMIET6400 + Controller M221-16IO Relay Ethernet TM221CE16R = Rp 5.300.000 s/d Rp 5.500.000

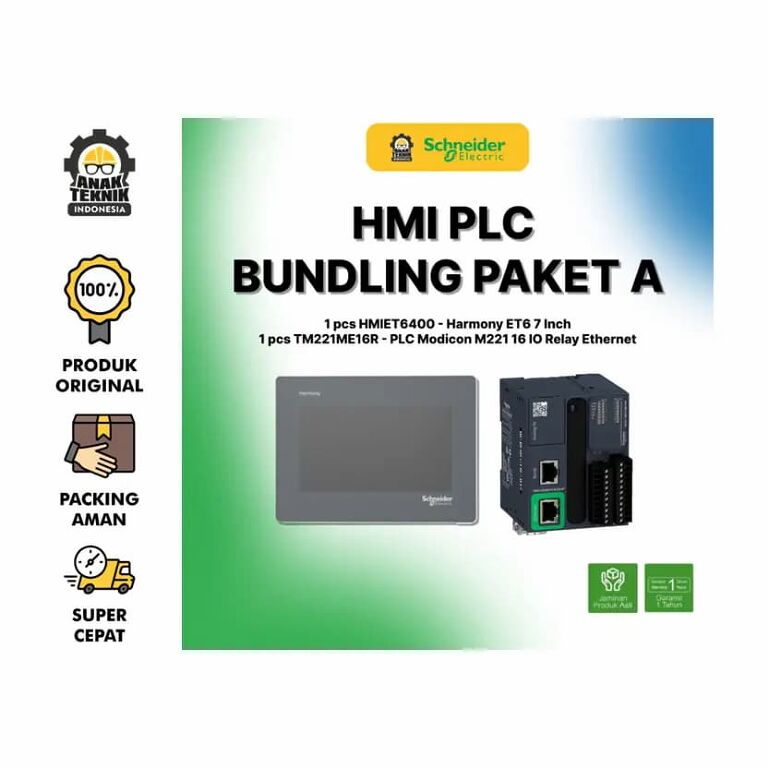

• Bundle Schneider HMI Easy Touch Panel 7inc HMIET6400 + Controller M221-16IO Relay Ethernet TM221ME16R = Rp 5.600.000 s/d Rp 5.800.000

Bagaimana cara memesan Bundle Schneider HMI Easy Touch Pane

Bundle Schneider HMI telah tersedia di situs Anak Teknik Indonesia dan VSDpedia. Pemesanan dapat dilakukan secara online melalui tautan berikut ini

Anda dapat melakukan pemesanan dengan mengunjungi situs Anak Teknik Indonesia dan VSDpedia.
